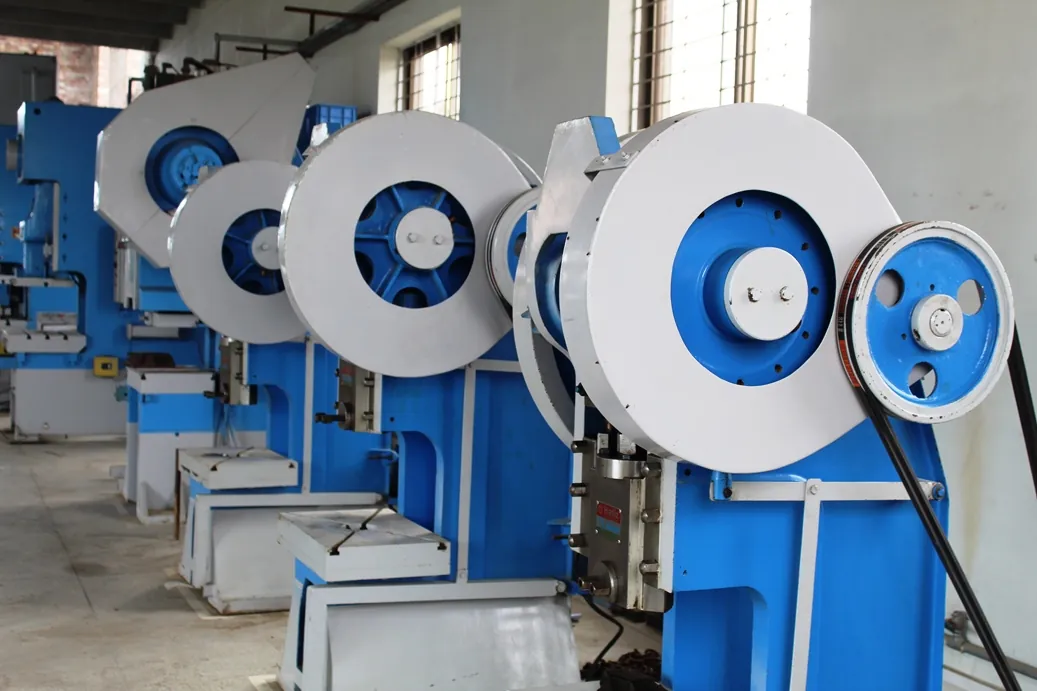

A row of mechanical presses inside Stellar MPM

Equipment portfolio

Capacity for precise, repeatable production.

A press line from 20 to 310 tons, supported by in-house die-shop capability and accurate sheet preparation.

Our press shop

Presses from 20 to 310 tons.

  • Our press shop contains presses ranging from 20 tons to 310 tons.
  • We have a line of mechanical presses that ranges from 20 tons to 50 tons.
  • Also one hydraulic press of 310 tons.
  • Pneumatic presses ranging from 50 tons to 160 tons are operational.
  • With our line of presses, we have a stroke capacity of 70,000 strokes per day.
Stellar MPM press shop

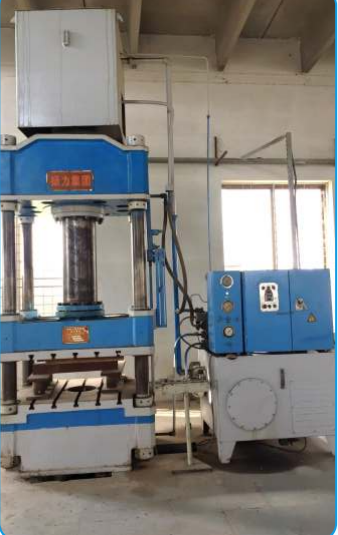

Hydraulic Press (310 tons)

Made in China 2011

Capacity300 tons
Rated tonnage point6.5 mm
Stroke length1,500 mm
Speed30–60
Die height460 mm
Slide adjustment120 mm
Bolster area1,500 × 700 mm
Bolster thickness180 mm
Slide area920 × 700 mm
Main motor29.5 hp
Hydraulic press, 310 tons

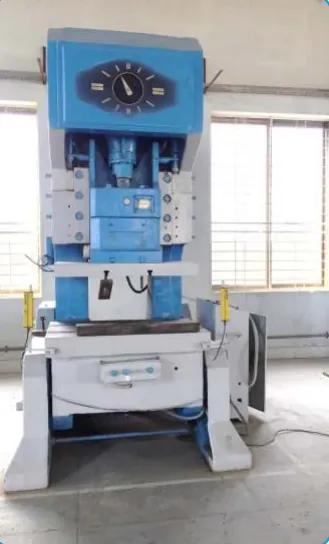

Pneumatic Press (160 tons)

Made in China · 2011

Capacity160 tons
Rated tonnage point6 mm
Stroke length600 mm
Speed40–85
Die height350 mm
Slide adjustment100 mm
Bolster area1,200 × 700 mm
Bolster thickness150 mm
Slide area700 × 580 mm
Main motor26 hp
Pneumatic press, 160 tons

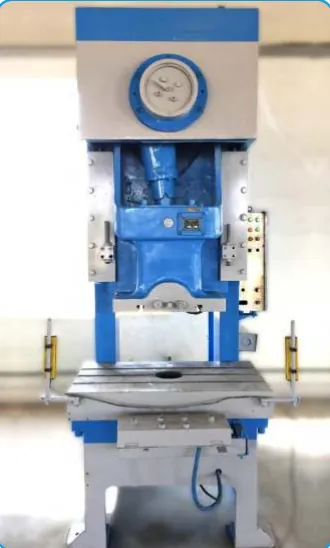

Mechanical Press (110 tons)

Made in China · 2011

Capacity110 tons
Rated tonnage point5 mm
Stroke length500 mm
Speed50–100
Die height320 mm
Slide adjustment90 mm
Bolster area1,150 × 660 mm
Bolster thickness120 mm
Slide area650 × 520 mm
Main motor15 hp
Mechanical press, 110 tons

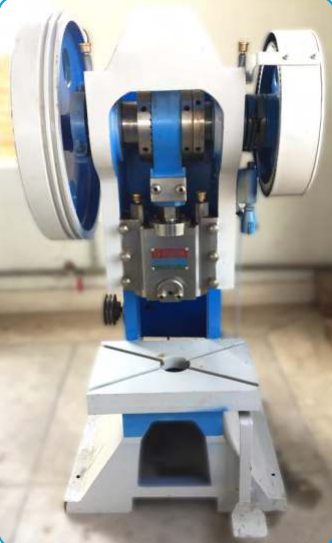

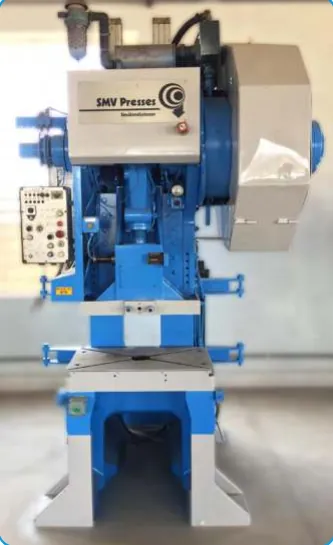

Mechanical Press (50 tons)

Made in China · 2011

Capacity50 tons
Rated tonnage point4 mm
Stroke length380 mm
Speed60–120
Die height270 mm
Slide adjustment70 mm
Bolster area900 × 400 mm
Bolster thickness90 mm
Slide area500 × 400 mm
Main motor7.4 hp
Mechanical press, 50 tons

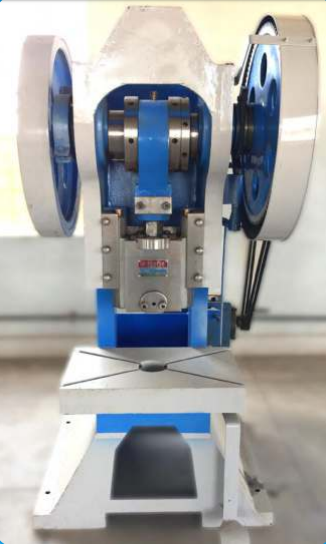

Mechanical Press (40 tons)

Capacity40 tons
Rated tonnage point3.2 mm
Stroke length360 mm
Speed65–130
Die height250 mm
Slide adjustment60 mm
Bolster area850 × 360 mm
Bolster thickness90 mm
Slide area430 × 350 mm
Main motor5 hp
Mechanical press, 40 tons

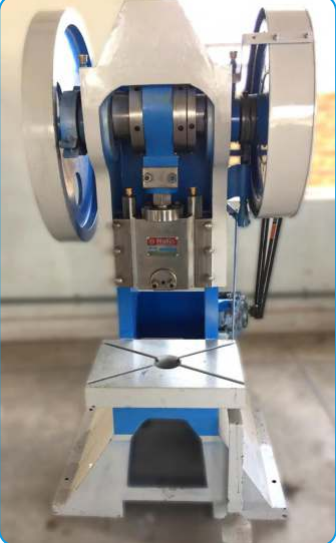

Mechanical Press (30 tons)

Made in China · 2011

Capacity30 tons
Rated tonnage point3.2 mm
Stroke length320 mm
Speed70–135
Die height250 mm
Slide adjustment55 mm
Bolster area780 × 340 mm
Bolster thickness70 mm
Slide area380 × 320 mm
Main motor4 hp
Mechanical press, 30 tons

Mechanical Press (20 tons)

Capacity20 tons
Rated tonnage point3.2 mm
Stroke length300 mm
Speed75–140
Die height245 mm
Slide adjustment50 mm
Bolster area720 × 320 mm
Bolster thickness70 mm
Slide area350 × 300 mm
Main motor2 hp
Mechanical press, 20 tons

Die shop

Tooling support under the same roof.

  • Our die shop is equipped with the latest tools and machines.
  • We have a lathe machine, drill machine and milling machine.
  • We have measuring tools for precision and accuracy in parts design.

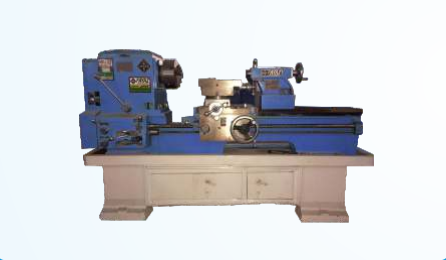

Lathe machine in the die shop

Shearing section

Accurate material preparation.

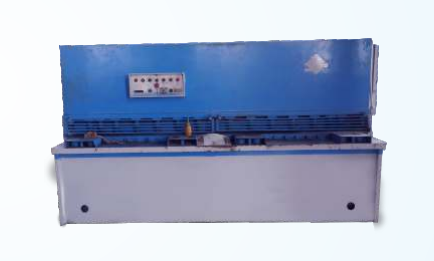

We have a hydraulic shearing machine for precise and accurate cutting.

Hydraulic shearing machine
Milling machine
Milling Machine

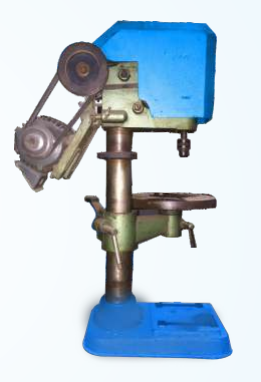

Tapping machine
Tapping Machine

Need more machinery?

Let production needs lead.

We can discuss additional machinery and process requirements around the needs of your production program.
